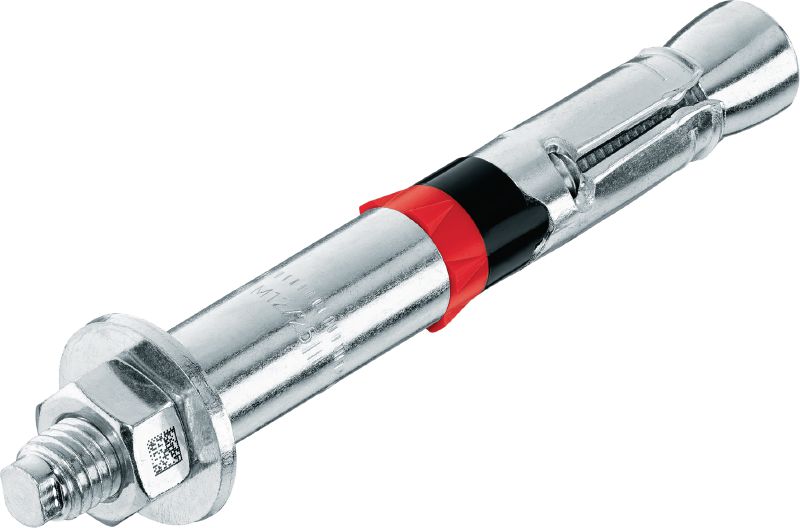

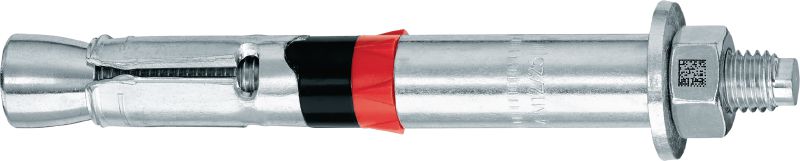

HSL4-G Heavy-duty wedge anchor
New product
Ultimate
Item #r11062061
Ultimate-performance heavy-duty expansion stud anchor with approvals for safety-relevant applications in concrete (carbon steel, external thread)
- Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
- Head configuration: Externally threaded
- Approvals / Test reports: ETA, Fatigue, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Features & Applications
Features & Applications
Features
- High tensile and shear load capacity
- Force-controlled expansion allows follow-up expansion
- ETA Option 1 for cracked and uncracked concrete
- ICC-ES/AC 193 for cracked and uncracked concrete and seismic
- Suitable for dynamic loading including fatigue, seismic and shock
Applications

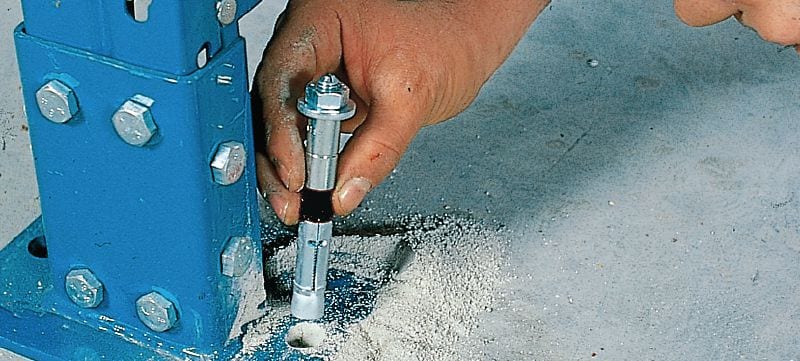

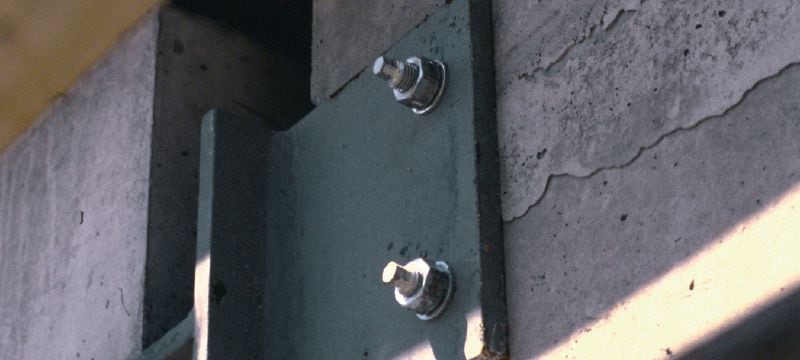

- Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants
- Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.
For approval or certificate information, please see individual items.
