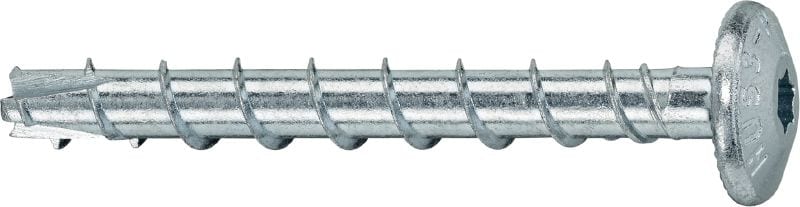

HUS3-P 6 Concrete screw anchor

Choose options

Anchor size - D

6 mm

Anchor length - L

40 mm
60 mm
80 mm

Pack size

100 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 164.70 ILS

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Pan head

Approvals / Test reports

ETA, Fire

Base materials

Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Type of fixing

Through-fastening

Reusable (and removable)

Not Possible

Cleaning procedures

Manual Cleaning

PROFIS Software

Yes

Installation direction

All

Material composition

Steel, zinc-plated (min. 5 µm)

Documents

Approval document

Technical information

Brochure

Instruction for use

pdf ETA 13/1038 for HUS3-H/C/HF/A/I/I-Flex/P/PS/PL screw anchor (ETAG 13/1038, Option 1), English, German, French, Polish [ 14 MB ]

Download

pdf ETA-10/0005, HUS4/HUS3/HUS for fastening in concrete, static loading, ML, German, English, French, Polish [ 13.3 MB ]

Download

Features & Applications

Features

Higher productivity – less drilling and fewer operations than with conventional anchors
Flat head configuration for easy adjustment of new channel system components
Reliable and easy to set – HSE product profile available
Reduced edge and spacing distances
Ideal for overhead installation – greatly simplifies the work

Applications

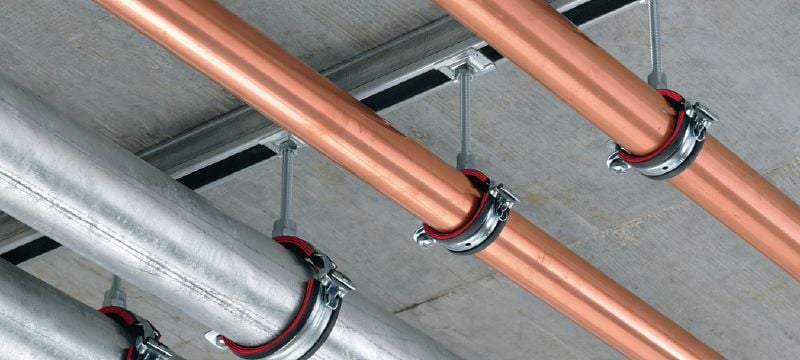

Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
Fastening handrails or railings and other ornamental steelwork
Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
