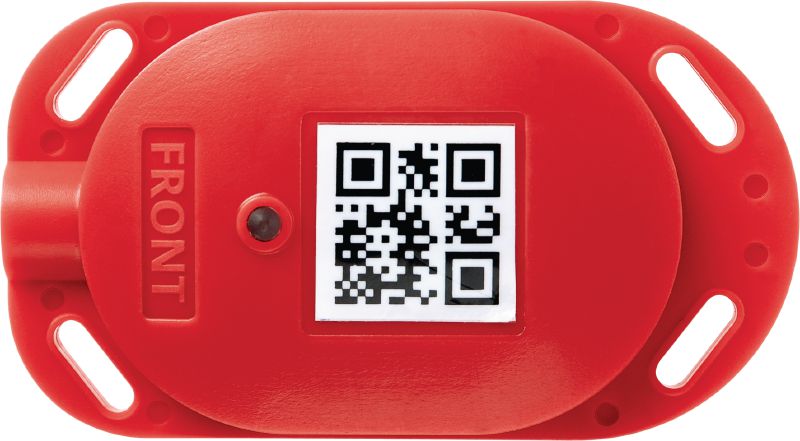

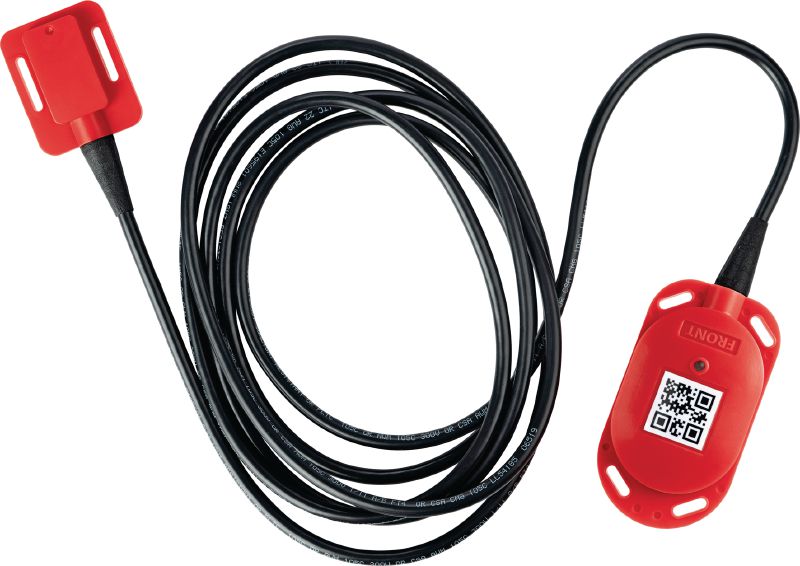

HCS T1 Concrete sensors (Bluetooth®)
New productItem #r13232407
Concrete maturity sensors for monitoring temperature and strength using Bluetooth® on-site data collection
- Monitoring: Strength and temperature
- Data collection: Bluetooth
- Data collection frequency: Strength and temperature: every 15 minutes for the first 60 days
Features & Applications
Features & Applications
Features
- More efficient scheduling – concrete maturity sensors put live curing data at your fingertips to better plan the day’s work
- Avoid concrete testing delays – shave up to 1-2 days off every pour cycle by switching to live curing data
- Optimize rental costs – rent equipment only once your concrete is strong enough

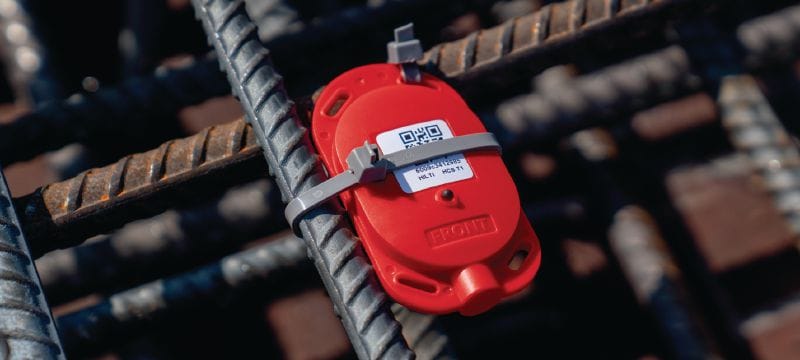

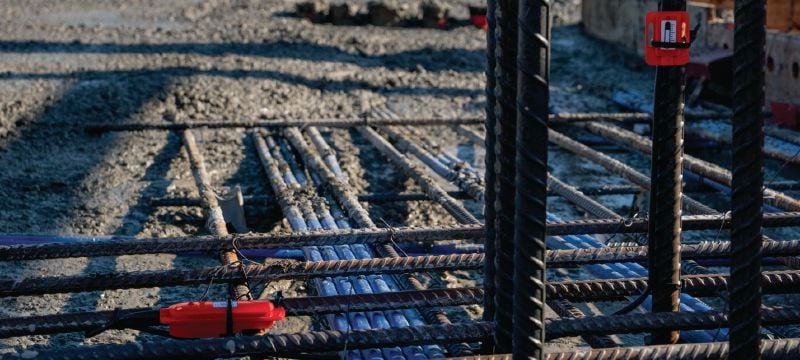

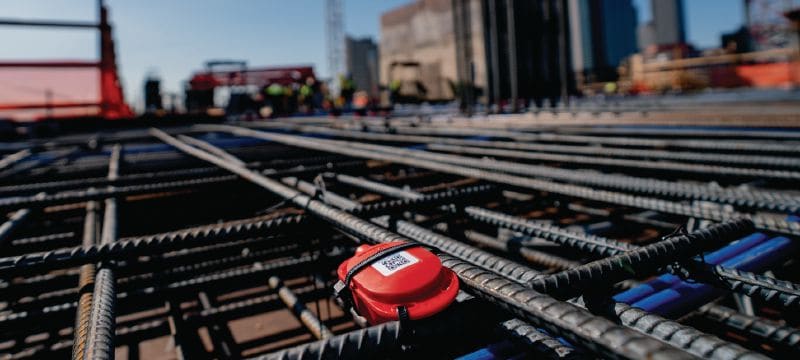

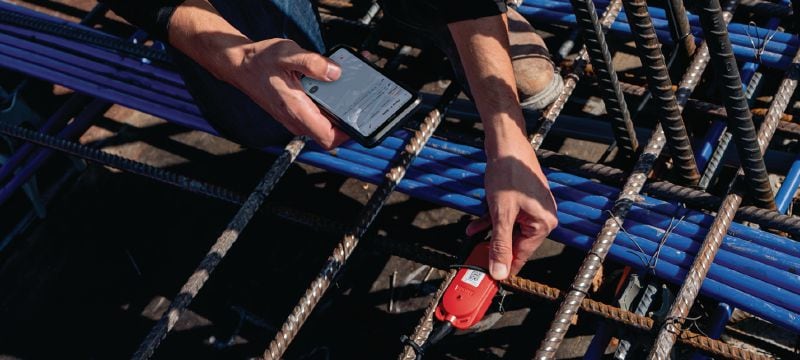

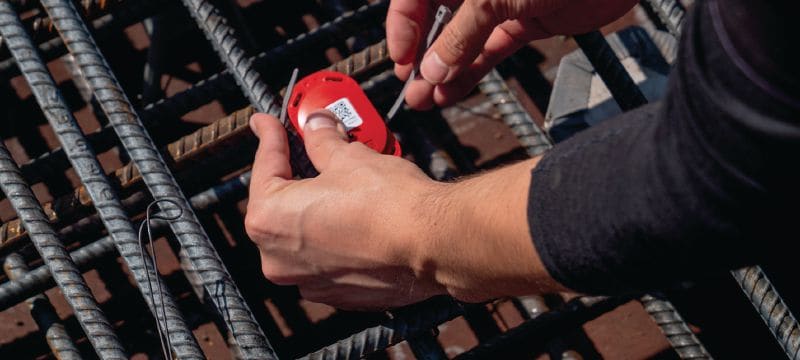

- Easy to use – simply attach the concrete sensors to rebar using cable ties before you pour, and see the results from anywhere using mobile Apps or desktop software
Applications
- Concrete strength monitoring – know immediately when formwork stripping can take place, and when rental equipment is needed
- Concrete temperature measurement – know when to mitigate against extreme temperatures
- Bluetooth®-based sensors are ideal for checking concrete maturity while you’re on-site and in range of the sensor. If your project will have sensors distributed over a large area or you need continuous monitoring with cloud-based access to the information from anywhere, we recommend HCS T2 long-range concrete sensors
- For monitoring strength, a laboratory calibration service may be required. Contact your Hilti sales representative for further information
