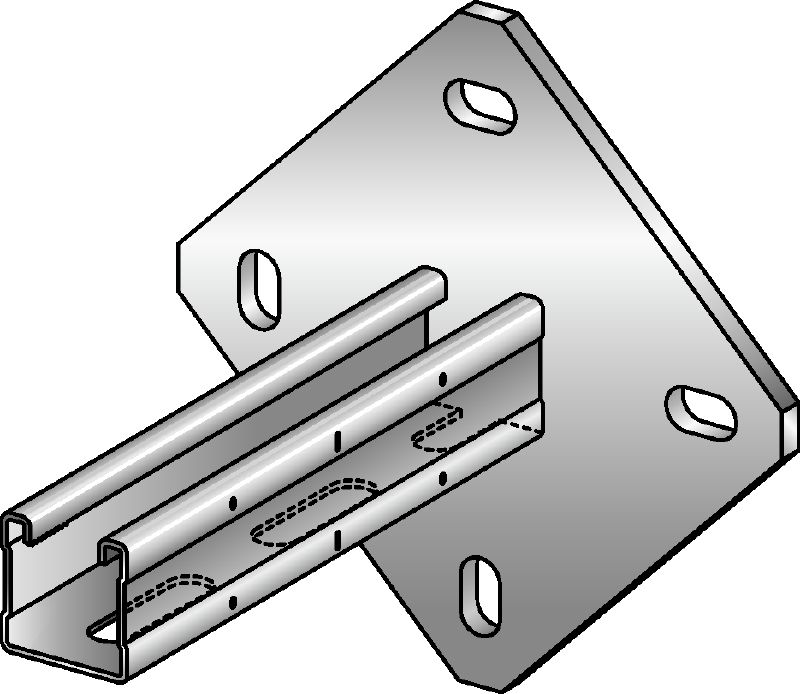

MQK-41/4 Bracket
New productItem #r4323
Galvanized bracket with a 41 mm high, single MQ strut channel with a square baseplate for higher rigidity
- Material thickness: Channel: 2 mm, baseplate: 8 mm
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanized
Features & Applications
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Engineered for higher shear load capacity and easier assembly
- Square base plate – strengthens the connection to the supporting material and increases rigidity
- Pre-marked dimensions – for quicker installation, assembly and measurement
- Single channel, slotted
Applications
- Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
- Installing cable trays, air ducts and pipe supports
