MQK-41 D-F
New productItem #r4326

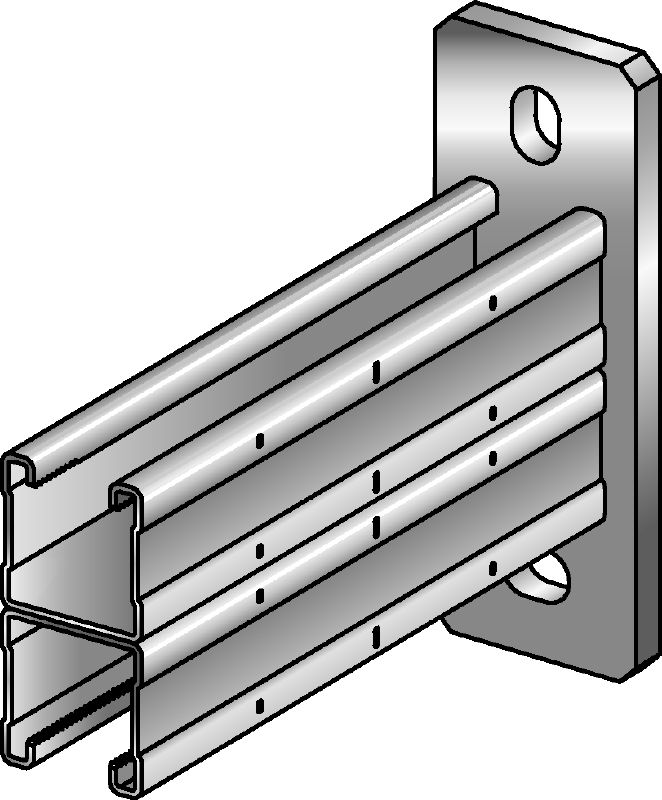

Hot-dip galvanized (HDG) double bracket for medium-duty applications
- Material thickness: Channel: 2 mm, baseplate: 10 mm
- Material composition: S235JR - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
Features & Applications
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Engineered for higher shear load capacity and easier assembly
- Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
- Pre-marked dimensions – for quicker installation, assembly and measurement
- Double channel, unslotted
Applications
- Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
- Installations in ventilated façades, damp interiors and outdoor areas with little or no exposure to the weather
- Installing cable trays, air ducts and pipe supports
- Recommended for use in moderately corrosive outdoor and indoor environments
