MIC-PS/MIC-PSP
New productItem #r3143

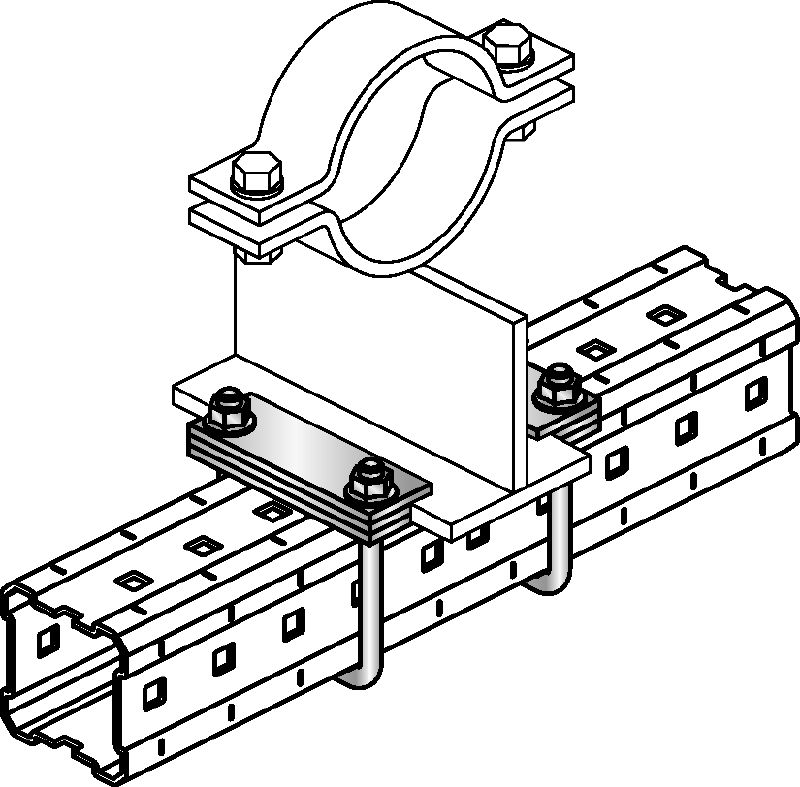

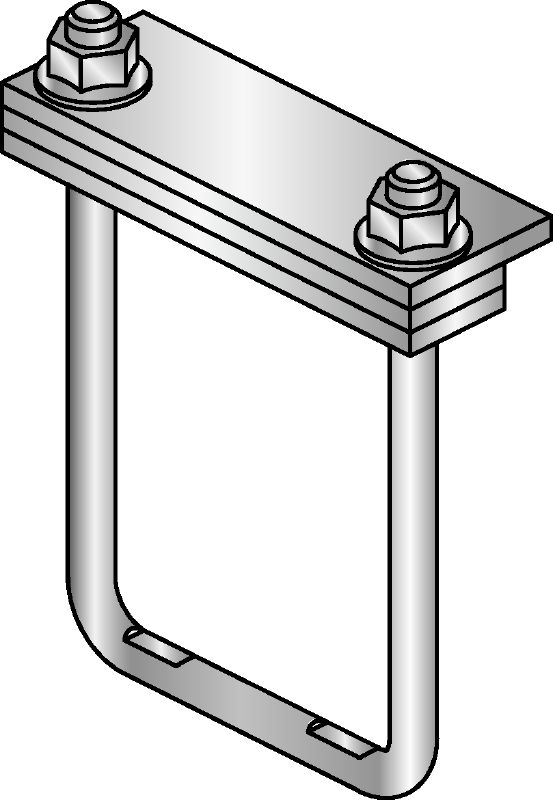

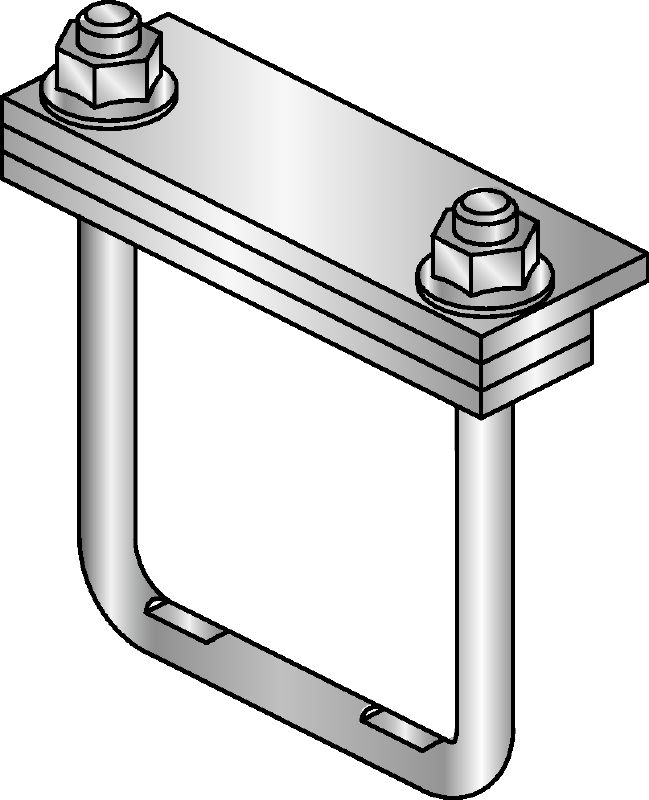

Hot-dip galvanized (HDG) connector for fastening pipe shoes to MI girders for heavy-duty applications with expansion
- Material composition: U-bolt: Steel grade 8.8; Plate: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Nut: Steel grade 8
- Surface finish: HDG: U-bolt, Nut 45 µm - DIN EN ISO 1461; Plate: 55 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Features & Applications
Features & Applications
Features
- Pipe shoe support free to move in one direction
- Fully adjustable

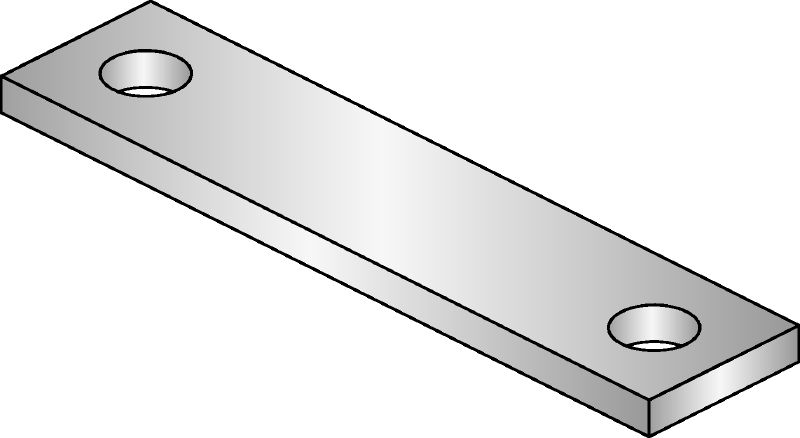

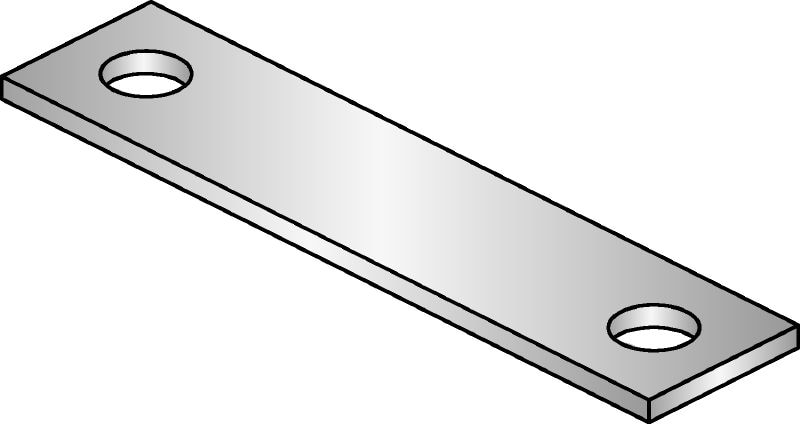

- Spacer plates permit use of pipe supports with base plates of greater thickness
- Pipe shoe can move freely in one axis
- Quicker and easier creation of light-duty fixed points in conjunction with pipe supports
Applications
- Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
- Industrial and heavy commercial applications, eliminating the need for welding
- Adapter components for pipe support clamping systems
- Recommended for use in moderately corrosive outdoor and indoor environments
