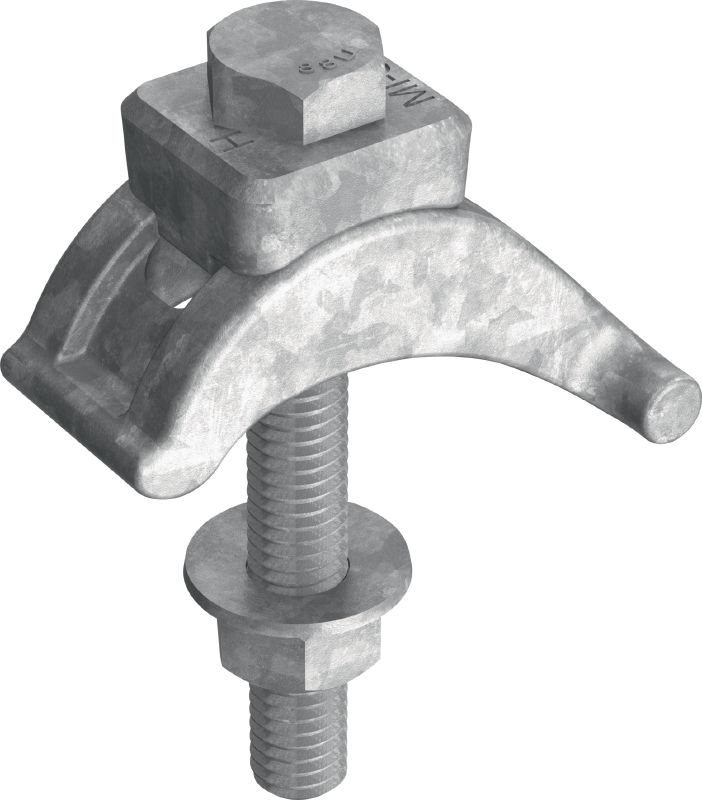

MI-SGC M12
New productItem #r3979

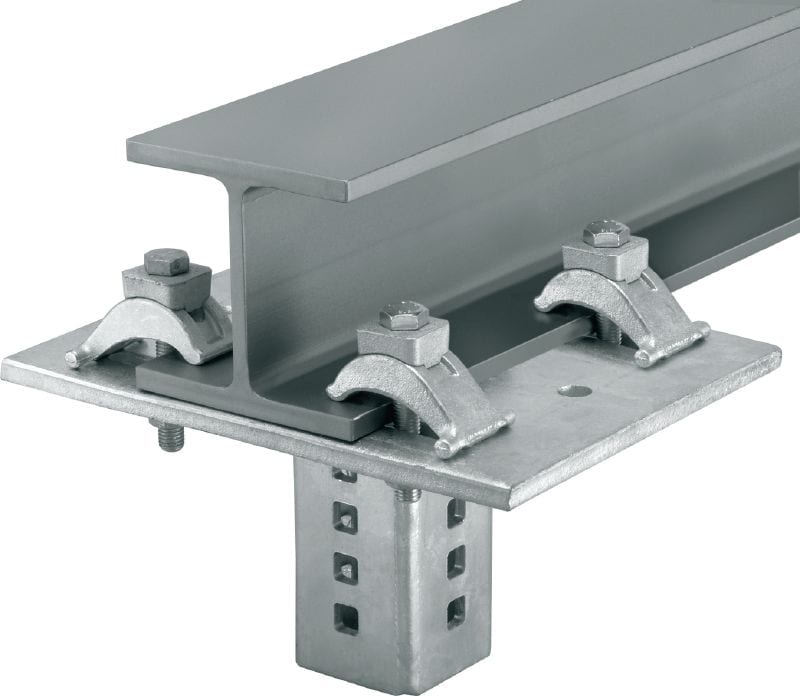

Hot-dip galvanized (HDG) single beam clamp for connecting MIQ steel baseplates to steel beams
- Thread connection - M: M12
- Weight: 0.36 kg
- Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
Features & Applications
Features & Applications
Features
- Corrosion protection on the steel beam is not damaged by the beam clamp
- Equipped with a set of vibration-resistant washers
Applications
- Compatible with steel beams with flange thicknesses from 3-36 mm and angles of up to 15°
