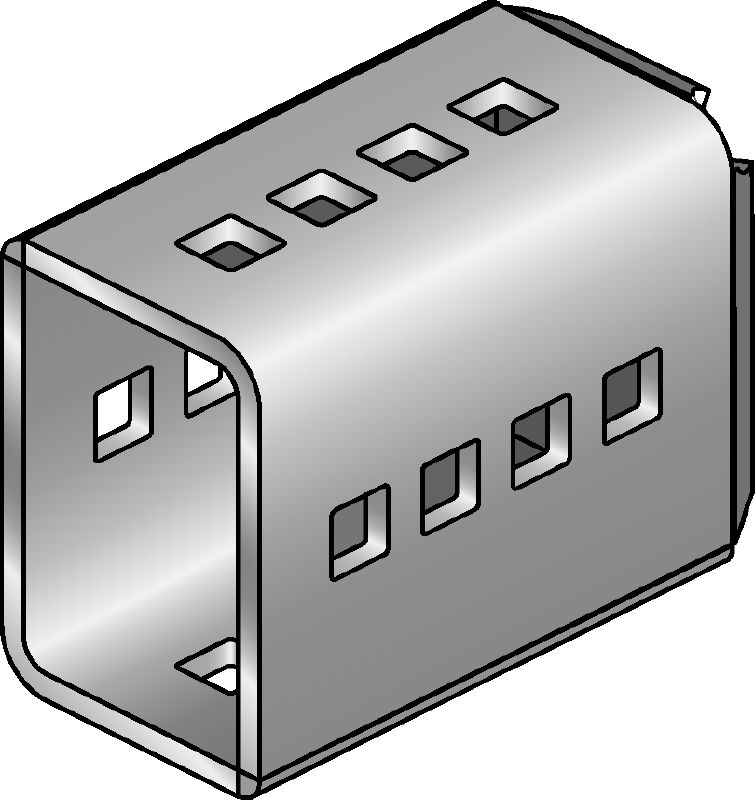

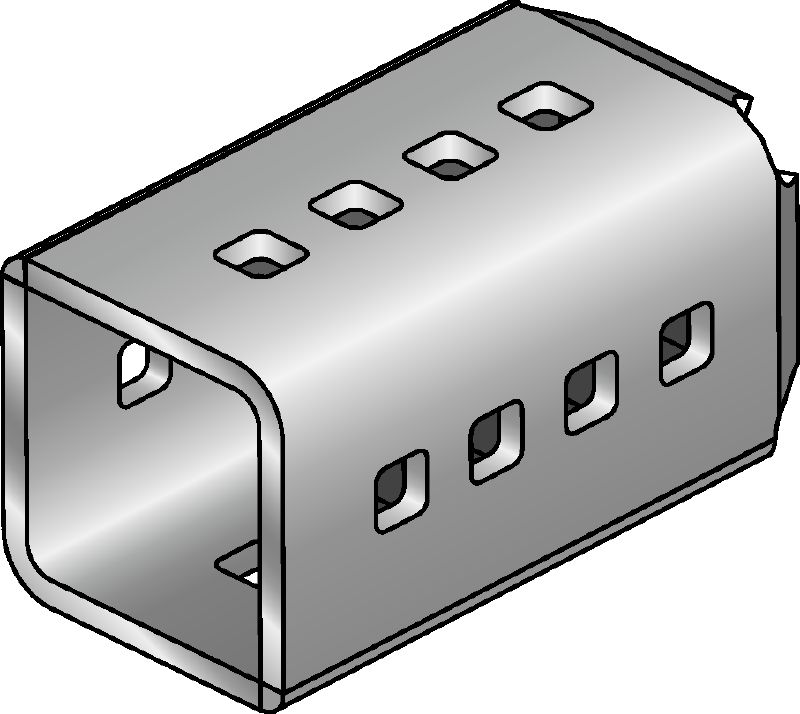

MIC-SC Connector
New productItem #r6191
Hot-dip galvanized (HDG) connector used with MI baseplates that allow for free positioning of the girder
- Material composition: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2
- Surface finish: None (primer coating-basic connector)
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Features & Applications
Features & Applications
Features
- Girder connection point can be positioned as desired for special cases
- Supplied in a primer finish for trouble-free welding – can be galvanized or painted later if desired
Applications

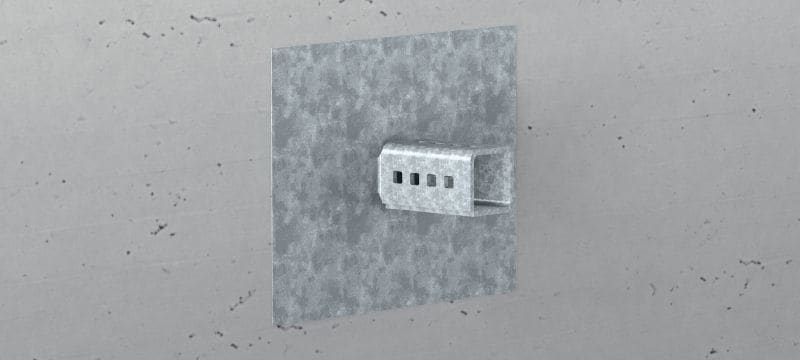

- Flexible connection to structural steelwork
- Used in cases where MI girder needs to be positioned as desired
