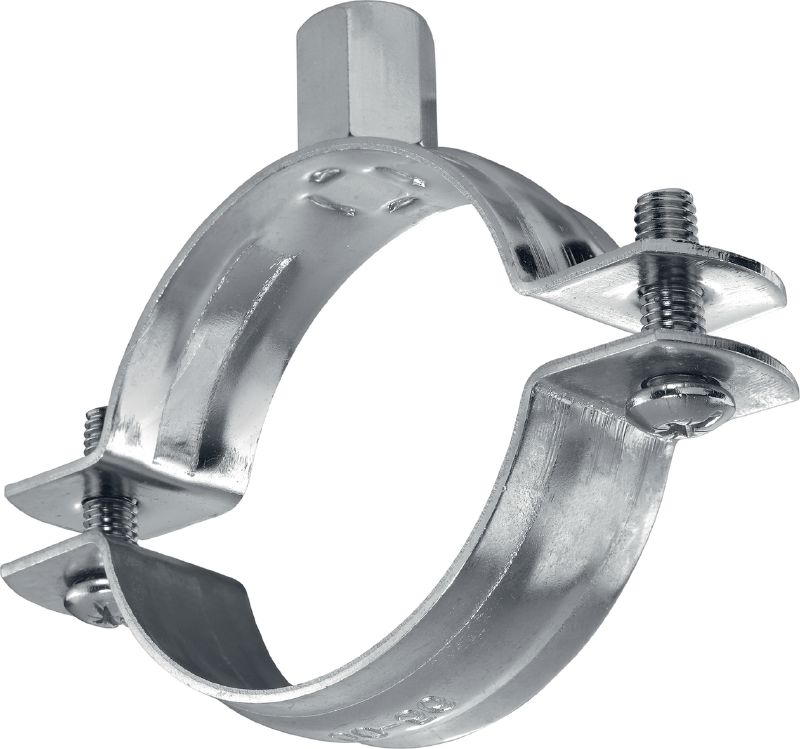

MPN-R Pipe clamp

40275_K3_X08_X09_X10.eps

40275_K3_X08_X09_X10.eps

Stainless steel (A4) pipe clamp without sound insulation for medium-duty applications

Material composition: Stainless steel, 1.4401 (A4) - EN 10088, AISI 316
Surface finish: Outdoor Plus - Stainless Steel
Environmental conditions: Outdoor high pollution (C4 – high / C5)

standard

Choose options

Clamping Range - D

12 - 14 mm
15 - 18 mm
18 - 23 mm
26 - 31 mm
32 - 35 mm
38 - 43 mm
44 - 46 mm
47 - 51 mm
50 - 56 mm
57 - 61 mm
63 - 67 mm
70 - 73 mm
74 - 77 mm
78 - 80 mm
83 - 91 mm
101 - 106 mm
108 - 114 mm
118 - 125 mm
131 - 135 mm
136 - 139 mm
140 - 144 mm
159 - 163 mm
165 - 169 mm
193 - 200 mm
216 - 220 mm

Thread connection - M

M10, M12
M8
M8, M10

Pack size

5 pc
10 pc
25 pc

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 295.00 ILS

Technical Data

40275_K3_X08_X09_X10.eps

Material composition

Stainless steel, 1.4401 (A4) - EN 10088, AISI 316

Surface finish

Outdoor Plus - Stainless Steel

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Product Class

Standard

Documents

Features & Applications

Features

Short connection head allows closer installation to wall or ceiling
Double connection head on sizes above 1" for more flexibility
Combi-slot cheese head screw

Applications

Medium-duty pipe installations up to 220 mm

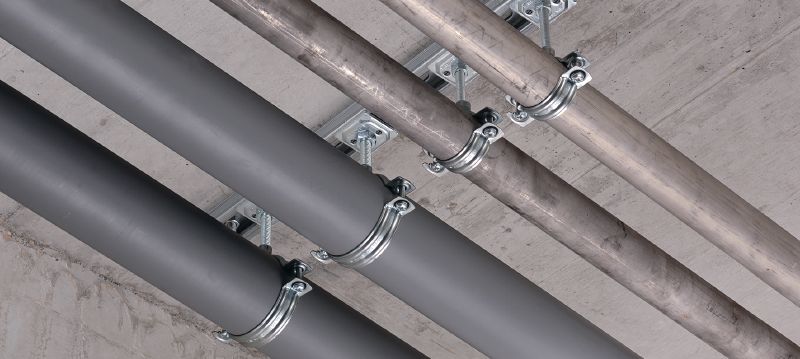

Fastening fresh water pipes and heating pipes in corrosive environments

For approval or certificate information, please see individual items.
