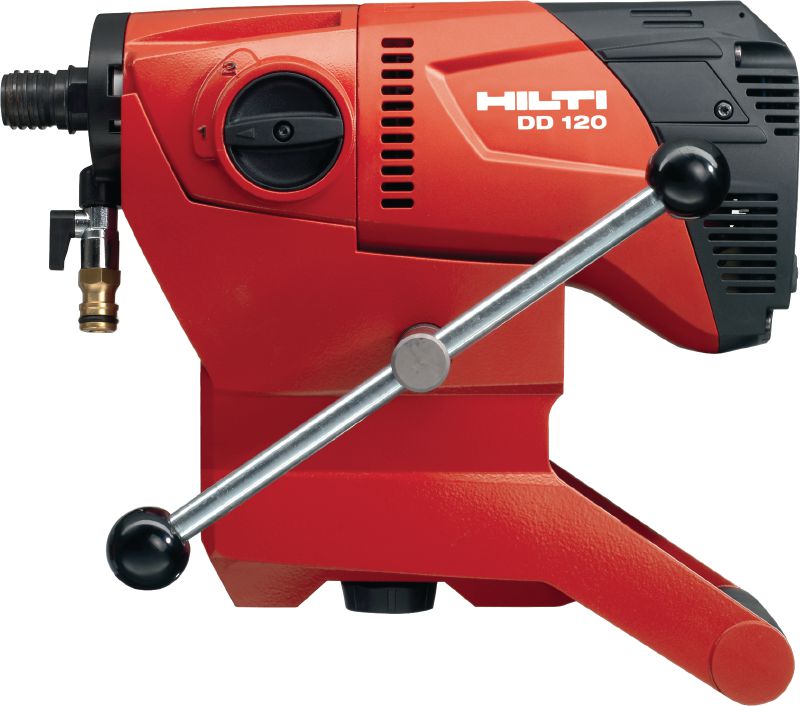

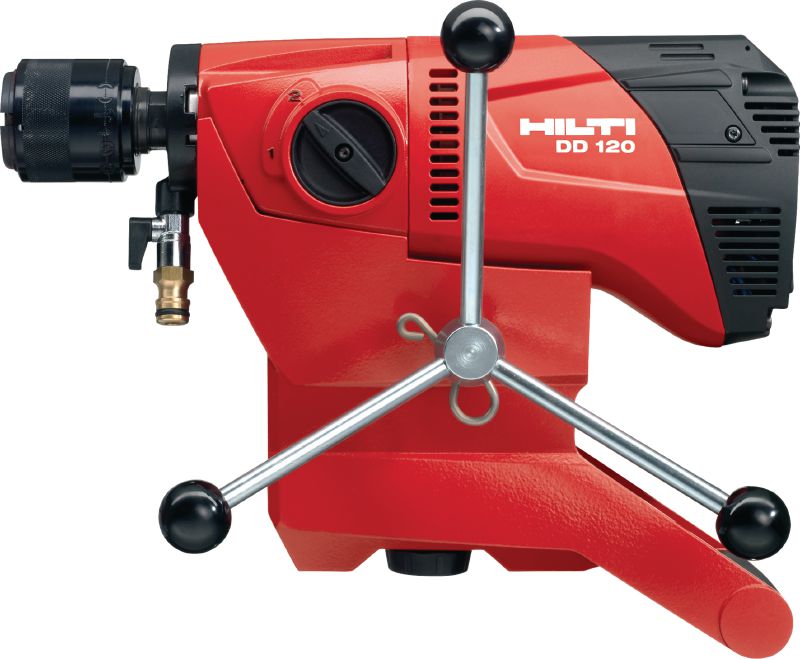

DD 120 Core drill

Diamond coring tool DD 120 230V #2058750

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

16,663.00 ILS

16,663.00 ILS / 1 each

Technical Data

Diameter range

16 - 162 mm

Base material

Concrete

Operation mode

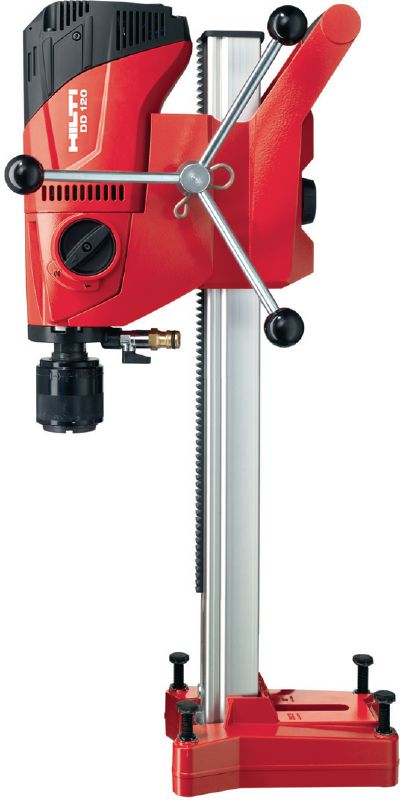

Rig-based drilling system

Rated input power

1600 W

Number of gears

No load RPM

gear 1: 740 rpm; gear 2: 1580 rpm

Weight according to EPTA-Procedure 01/2003 without battery

10.5 kg

Weight of complete system

11 kg

Dimensions (LxWxH)

327 x 147 x 330 mm

A-weighted emission sound pressure level

89 dB (A) ¹

Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)

2.5 m/s²

Tri. vibr. value for drilling into concrete (wet) (ah,DD) - Corebit A

PS/PL

According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DD 120 (01), Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Serbian [ 12 MB ]

Download

pdf Operating Instruction DD 120 (01), Arabic, cn, English, French, Japanese, Kazakh, Korean, Russian, Turkish, Ukrainian, Chinese [ 8.4 MB ]

Download

Features & Applications

Features

Exceptionally user-friendly thanks to intuitively-designed features and controls
Compact and lightweight concrete core drill – for much easier handling
Two-speed gearing for optimum speed and torque
Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximize core bit life
Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)
